LED Phantom offers a collection of top-quality EV chargers to meet the growing demand. Whether charging your electric vehicle at home or setting up a charging station at your commercial property, these cutting-edge chargers perform remarkably. We provide flexibility based on your needs with wall-mounted AC and DC charging options. Our chargers incorporate advanced interfaces, smart card scanning for user convenience, safety-first engineering, and sleek designs that seamlessly fit into any setting. Browse through our electric vehicle charger options and invest in innovation!
Explore Our Collection of Electric Vehicle Chargers
Wall Mounted AC Charging Pile
Our wall-mounted AC electric car charger for home and commercial use is designed for efficient and safe electric vehicle charging. Housed in a PC and ABS mixed-material body, it offers flexible startup methods such as offline card swiping, password entry, and plug-and-charge, with optional online options. With robust protection features, including leakage, ground, and overvoltage protection, it operates effectively in temperatures ranging from -30°C to 55°C, suitable for indoor and outdoor environments.
Power Coefficient
-
Charging Mode: LEVEL 2
-
Interface Type: J1772
-
Product Power: 6KW - 11.5KW
-
Input Voltage: 208 - 240V
-
Input Frequency: 50-60Hz
-
Output Current: 32A - 40A - 48A
-
Input Line Number: Three Lines - L1, L2, PE
-
IP Rating: IP65, IK08

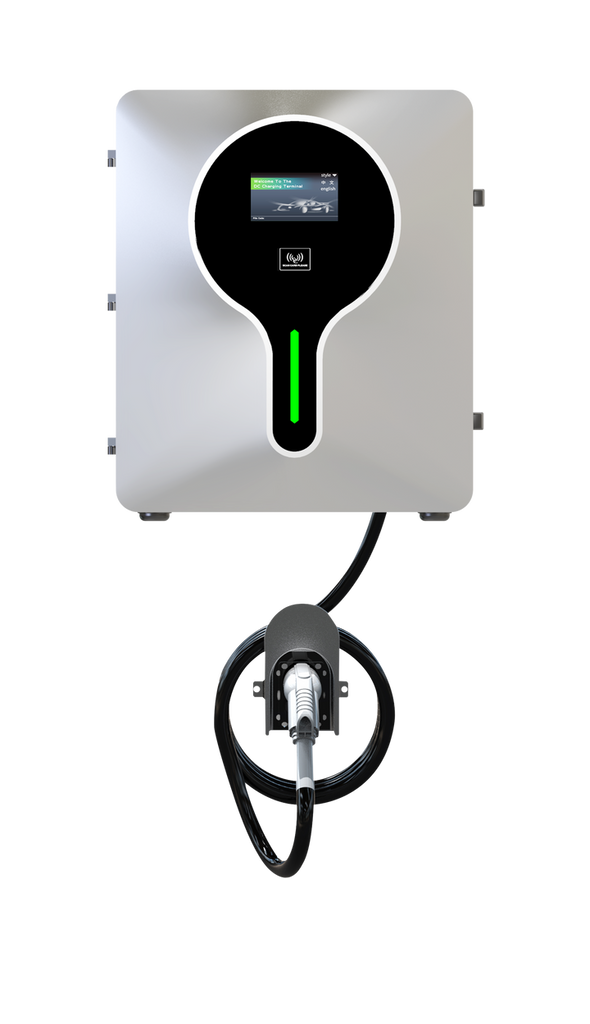

Wall-Mounted DC Charging Pile
Our collection's Wall-Mounted DC Charging Pile is designed for commercial, residential, and corporate environments. It offers a user-friendly 7-inch touchscreen for seamless interaction. It supports multiple charging methods, including offline card swiping and plug-and-charge, with optional online capabilities. Made from a Galvanized sheet, this compact size (29.72" X 25.12" X 8.35") EV car charger is a robust solution.
Power Coefficient
-
Product Power: 30KW
-
Input Voltage: 380-480 VAC
-
Input Frequency: 50/60Hz
-
Output Voltage: 200-1000VDC
-
Voltage Stabilization Accuracy: 0.5%
-
Steady Current Accuracy: 1%
-
Maximum Output Current: 100A
-
Power factor: >0.95
-
Heat Dissipation Method: Forced Air Cooling
-
Input Wire Harness: L1, L2, PE
Application of Electric Vehicle Charger
AC Chargers
These are typically utilized in residential areas, apartment complexes, and companies. They provide slower charge rates for overnight or long parking durations. They may also be found in public parking lots and retail malls, providing EV drivers convenience throughout their everyday activities.
DC Chargers
Conversely, DC chargers are essential for commercial and rapid charging applications. These are installed at highway rest areas, charging stations, and extensive business zones where quick charging is needed. Corporate offices, retail centers, and car dealerships use DC chargers to expedite EV charging for staff and clientele.
Care and Maintenance of Electric Vehicle Charger
Regular inspection and maintenance of AC and DC chargers is vital, particularly in commercial and high-traffic areas. Follow the suggested tips for their optimal performance, longevity, and safety:-
Visual Inspection
Check the cords, connections, and charging ports regularly for noticeable damage. Look for symptoms of wear, corrosion, or exterior damage to the housing. Replace any broken components as soon as possible to eliminate safety hazards.
Cable Care
Ensure that charging cables are neatly coiled and stored properly when not in use. Avoid exposure to extreme temperatures or bending, which can degrade the insulation and lead to electrical faults.
Cleaning
Periodically clean the charging connectors and display screens using non-abrasive, non-conductive cleaners. Dust or dirt can impair proper connection and efficiency.
Firmware Updates
Keep the electric vehicle charger’s software and firmware up to date, especially for smart chargers that rely on communication protocols like OCPP. Updates enhance performance, security, and compatibility with newer EVs.
Safety Tests
Routine electrical tests, such as insulation resistance and ground continuity checks, should be performed to verify protection features like overvoltage and short-circuit protection are working.
Empower your electric vehicles with our fast and reliable chargers. Also, check out LED Phantom lights, and lighting control panels, for your commercial or industrial space's lighting enhancement. For further queries, contact us right away.
FAQs
Q1. What is the difference between Level 1, Level 2, and Level 3 EV chargers?
Level 1 chargers use a standard 120V outlet and provide slow charging (2-5 miles per hour). Level 2 chargers operate on 240V and offer faster charging (10-60 miles per hour). Level 3 (DC fast chargers) charge swiftly, adding 60-100+ miles in 20-30 minutes.
Q2. Are EV chargers compatible with all-electric vehicles?
Most EV chargers are compatible with all-electric vehicles, but the charging speed and plug type vary. AC chargers use common connectors like Type 1 and Type 2, while DC fast chargers use CCS or CHAdeMO standards for fast charging.
Q3. How long does it take to charge an EV with different levels of chargers?
Charging times for EVs vary by charger type:
-
Level 1 (120V AC): 12-20 hours for a full charge.
-
Level 2 (240V AC): 4-8 hours.
-
DC Fast Chargers: 20-60 minutes to reach 80%, depending on the vehicle's battery capacity.
Q4. Are there any government incentives or rebates for installing EV chargers?
Yes, the U.S. offers several federal, state, and local incentives for installing EV chargers. The federal tax credit under the Alternative Fuel Infrastructure Tax Credit provides up to 30% of installation costs, and states offer additional rebates and grants.
