- Comfortable, even illumination for visual well-being.
- Modern design seamlessly fits any space.
- Saves energy, surpassing fluorescent troffers.
- Eco-friendly, reduces carbon footprint.
- Dimmable options for customizable control.
- Optimal light distribution enhances productivity and aesthetics.

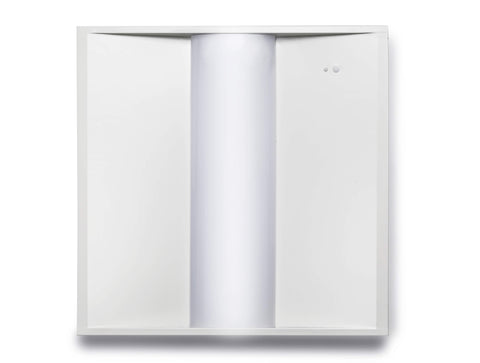

LED VOLUMETRIC TROFFER
(REDWOOD GSR+)
Introducing the Redwood GSR+ LED Volumetric Troffer: Elevate your space with superior lighting quality and energy efficiency. Its advanced LED technology ensures even and glare-free illumination for offices, schools, and commercial spaces. With a sleek design and versatile installation options, the Redwood GSR+ seamlessly integrates into any modern interior, offering significant energy savings and an extended lifespan compared to traditional fluorescent troffers. Upgrade now for exceptional lighting performance with style.
Product Details
FEATURES & BENEFITS
CONSTRUCTION
Durable steel housing with a polycarbonate lens, removable for quick cleaning.
ELECTRICAL
- 120-277V or 200-480V (50/60Hz), typical, depending on model.
- Power Factor: Greater than 0.9 (0.99 typical).
- Total Harmonic Distortion: Less than 10%.
- Standard is 3kV for LED drivers. Additional surge protection of 10kA and 20kA available as options.
OPTICS
- CCT: 4000K & 5000K standard.
- CRI: > 80
- Lenses: UV stable clear polycarbonate.
MOUNTING
- Drop Ceiling
- Surface
- Aircraft Cable Suspension
CONTROLS
OPERATIONS
It has a Life Span of over 70,000 hours.
WARRANTY
7-Year Limited Product Warranty
(Optional 10-Year Warranty available)
LISTINGS & CERTIFICATIONS
